Hellipse NZDF SE-A
Núm. Artíc. 857-40271 | TRAY-NZDF-SE-A-3A-06 Detalles

  • Positive fibre management - minimum bend radius 37.5mm
  • 10 fibre entry ports
  • 2 mounting positions for splice protector inserts
  • Option for optical splitter/3A or ANT splice bridge
  • Optical splitter accommodation up to a maximum of 70 x 20 x 6mm
  • Back to back mounting capability allows routing of fibre between trays
  • Maximum splice capacity of 24 fibres (double stacked)
Mostrar más

Solicite su oferta individual ahora

 Encontrar tiendas online
Content 6 x Hellipse NZDF SE-A, 12 x Heatshrink (3A) splice protector holders
Package Content packed in bag
PART DESCRIPTION TRAY-NZDF-SE-A-3A-06
Product Family Hellipse NZDF SE-A
Product Group Tubed Fibre Optic Splice Tray
Qty Trays 6
Technical Description The Hellipse NZDF SE-A is an elliptical tray designed for single element and single circuit applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 202 x 148 x 7mm. The Hellipse NZDF SE-A tray accepts a wide range of splice protectors and can accommodate 2 x 60 x 7 x 4mm optical splitters when using the optional splitter/3A or ANT splice bridge. A single optical splitter up to a maximum of 70 x 20 x 6mm can be fitted into the tray in place of a splice bridge. The tray has 2 pivot points to allow for mounting into a 6 tray module and is suitable for use in the FDN or UFC tubed closures. The maximum splice capacity of the Hellipse NZDF SE-A tray is based on 24 double stacked heatshrink (3A) splice protectors upto 60mm long.
Type of Tray Hellipse NZDF SE-A

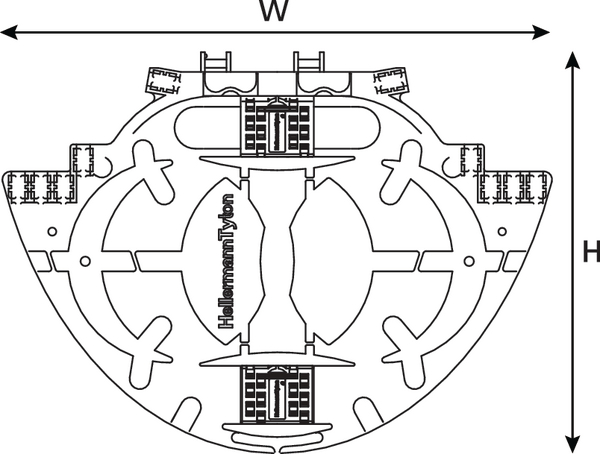

Depth (D) 7mm
Height (H) 148mm
Recov. ∅ d max. 2.4mm
Width (W) 202mm
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660113376
Order Unit pcs.
ETIM 7.0 Key EC001123
