MDU S5 with SE-IR trays
Núm. Artíc. 857-01494 | MDU-S5-LLWX Detalles

  • Maximum 216 Fibre Splices
  • 250µm IR Fibre Management System
  • 18 SE-IR Trays with 3A Splice Bridges
  • 2 Loop Storage Managers
  • 4 x Entry/Exit Port Blanks
  • Strength Member Anchor
  • In-built spirit level
  • IP54/IK08
  • UV Stable
  • V0 Rating
Mostrar más

Solicite su oferta individual ahora

Aplicación Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Pont (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
Colour Grey RAL 7035 (RAL7035)
Content S5 Enclosure
250µm IR Fibre Management System
18 SE-IR Trays with 3A Splice Bridges
2 Loop Storage Managers
4 x Entry/Exit Port Blanks
Strength Member Anchor
In-built spirit level
Fibre Picker
Wall Mounting Kit
Red and Green Polyspiral Tubing(2M)
Red and Green Velcro Ties(5)
Material Acrylonitrile Butadiene Styrene (ABS)
Pack Cont. 1pc.
Package Content packed in EA
PART DESCRIPTION MDU-S5-LLWX
Port count 8
Product Family Fibre Optic External/Internal Enclosure
Product Group S5 Series MDU/MBU Enclosures
Qty Trays 18
Short Description MDU S5 with SE-IR trays
Splice Capacity 216

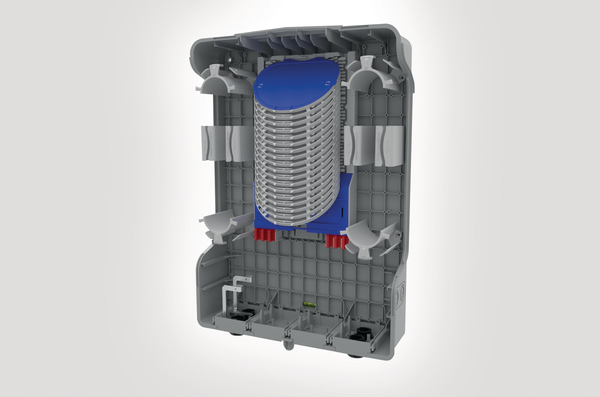

Technical Description The S5 enclosure is configured with the HellermannTyton 250µm IR Management System. The management system is mounted on an aluminium backplane which accommodates 18 SE-IR trays giving a maximum of 216 3A fibre splices The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. Loop storage management for both incoming and outgoing cables is provided by lateral cable managers and loop storage bobbins located on either side of the fibre management trays. The enclosure is 568 x 375 x 165mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 8 dual input/output ports, 4 across the bottom, 2 on the top and 2 on each side, each port will accommodate a 20 or 25mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
Type of Tray Integrated Routing SE, 250µm
Variant Indoor/Outdoor FTTx Enclosures

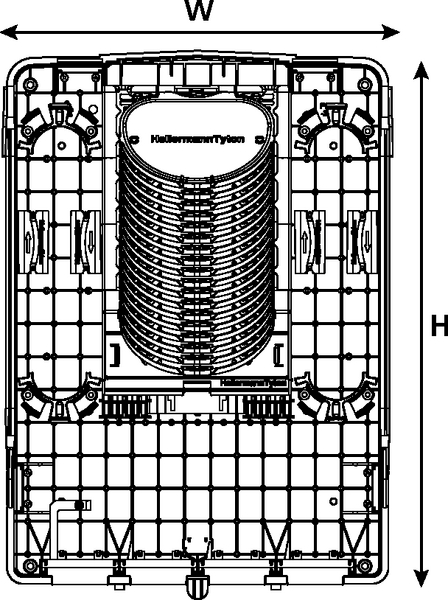

Depth (D) 165mm
Height (H) 568mm
Width (W) 375mm
Hazardous Goods No
IP-Rating IP54
Country of Origin GB
Customs Number 85176200
GTIN-13 / EAN 5022660164293
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
UNSPSC Key 43223338
