28/03/2024

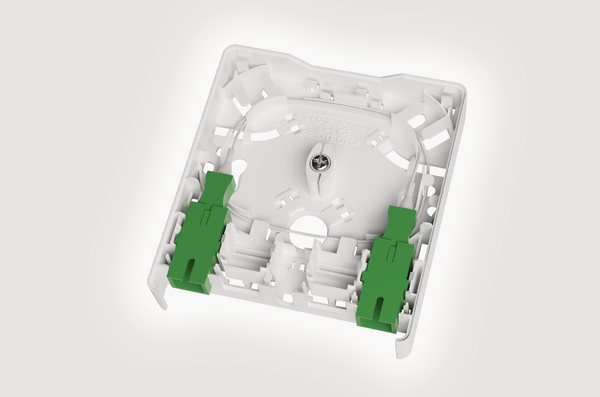

FWO with 2 x SC SX APC Adaptor and 2 x SC APC Pigtails.
Núm. Artíc. 857-01095 | FWOA-VP-VP/WH Detalles

  • 2 x SC APC Simplex Adaptors and 2 x SC APC Pigtails
  • Install directly on the wall or onto a flush-mount back box
  • Cable entry at the base, through the rear of the unit or at the sides
  • Accommodates up to 4 splice protectors (up to 45mm)
  • Quality surface finish
  • Tamper-proof latches
  • Positive fibre management to ensure a 30mm minimum bend radius
Mostrar más

Solicite su oferta individual ahora

Aplicación The wall mounted fibre optic outlet allows a fibre optic cable to be connected directly into the end user apartment.
Colour White (WH)
Connector Colour Green (GN)
Connector Type SC-APC
Content Fibre Wall Outlet
2 x SC APC Simplex Adaptor
2 x SC APC Pigtail
Wall Mounting Kit
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION FWOA-VP-VP/WH
Product Description FWO with 2 x SC SX APC Adaptors and 2 x SC APC Pigtails.
Product Family Fibre Optic Internal Enclosure
Product Group Fibre Wall Outlet
Short Description FWO with 2 x SC SX APC Adaptor and 2 x SC APC Pigtails.
Splice Capacity 4
Technical Description The closure is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The closure has 2 bottom and 1 rear cable entry point. The closure is supplied with two SC APC Simplex fibre adaptors and SC APC Pigtails. Fibre management features ensure a minimum bend radius of 25mm is maintained as the bare fibre is routed through the outlet and press fit strain relief features secure the incoming cable whilst cable tie anchor points are provided for additional strain relief. Screw holes allow for easy installation and positioning, alternatively the recessed base means the closure can be fastened with adhesive, maintaining the outlet flush to the wall.
Depth (D) 21mm
Height (H) 96mm
Width (W) 85mm
Country of Origin GB
GTIN-13 / EAN 5022660151958
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
