FDN 59 Port Tubed Closure : FDNTB-CXRCR67

C Length with Multi-Ribbon Tray with BasketNúm. Artíc.: 857-00977

Características del Producto

  • Maximum 216 (8 or 12 fibre) ribbon cable splice capacity
  • 58 round ports and 1 oval port
  • 18 x Multi-Ribbon trays
  • Maximum of 12 (8 or 12 fibre) ribbon cable splices per tray
  • Fibre storage basket for loop through applications supplied as standard
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)
Content FDN 59 Port Base
C-Length Cover (Dome)
Quick Release Clamp
Sealing ‘O’ Ring
Fibre Storage Basket

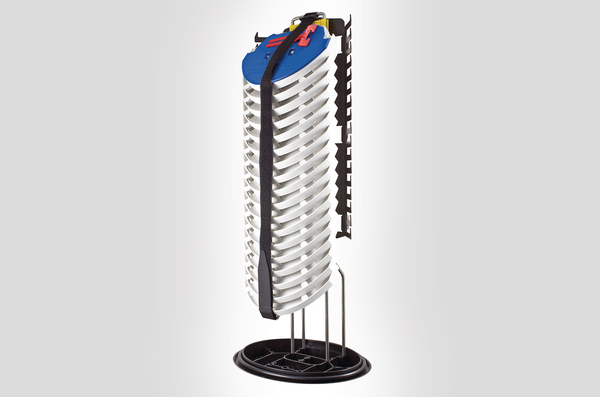

Tray Support Frame
Anchor Fixing Kit (3)
Tray Tool
Hook and Loop Securing Straps
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Cover Type C
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit
PART DESCRIPTION FDNTB-CXRCR67
Port L, T, S, B, R
Port count 1, 2, 4, 2, 52
Product Family C Length with Multi-Ribbon Tray with Basket
Product Group FDN 59 Port Tubed Closure
Qty Trays 18
Technical Description The FDN C length single stack closure is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate up to 18 Multi-Ribbon cable trays giving a maximum splice capacity of 216 (8 or 12 fibre) ribbon cables based on 12 ribbon cable splices per tray. The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white with a clear cover which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. The Multi-Ribbon tray can also accommodate 3A splices when used with the appropriate tubefix connectors and transport tubing (See Chapter 13 – Accessories).
Type of Tray Multi-Ribbon

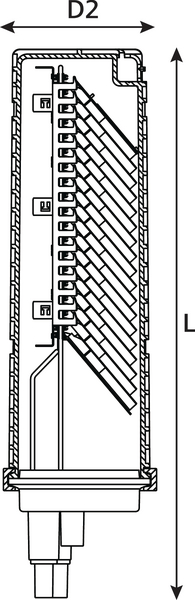

Length (L) 789mm
Length (mm) 789mm
Width D1 312mm
Width D2 222mm
GTIN-13 / EAN 5022660133572
ETIM 7.0 Key EC000762
