FDN 59 Port Tubed Closure : FDNTB-ABBCH3X

AB Length with BasketNúm. Artíc.: 857-00651

Características del Producto

  • Maximum 432 fibre splice capacity
  • 58 round ports and 1 oval port
  • Fibre storage basket for loop through applications
  • Supplied with 18 SMF SE-A Moulded Splice Holder Trays
  • Maximum 24 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)
Content FDN 59 Port Base
AB-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
Fibre Storage Basket
Tray Support Frame
Anchor Fixing Kit (3)
18 x SMF SE-A 3A Splice Trays
Tray Tool
Hook and Loop Tray Securing Strap
Transportation Tubing
Tubefix – Tube to Tray Securing Blocks
Hook and Loop Management Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 – 25
Green Marker 1 – 25
Cover Type AB
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit
PART DESCRIPTION FDNTB-ABBCH3X
Port L, T, S, B, R
Port count 1, 2, 4, 2, 52
Product Family AB Length with Basket
Product Group FDN 59 Port Tubed Closure
Qty Trays 18
Splice Capacity 432

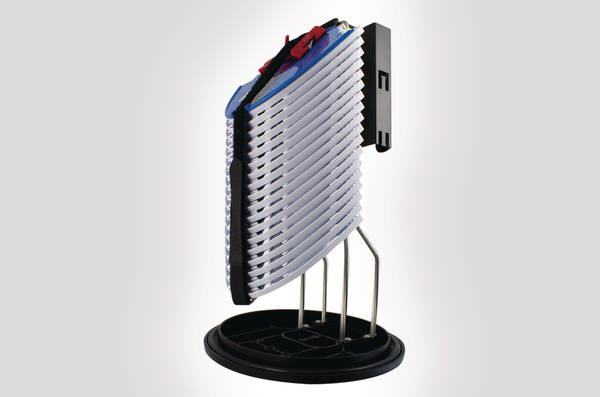

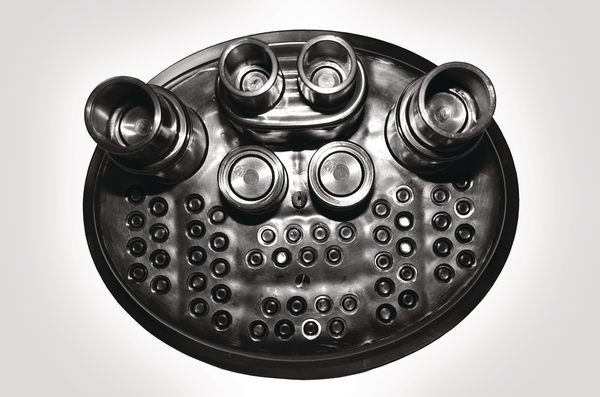

Technical Description The FDN 59 Port AB Length closure is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 18 SMF SE-A 3A moulded splice holder trays. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system.
Type of Tray Hellipse SMF SE-A
Variant Outdoor FTTx Enclosures
Length (mm) 561mm

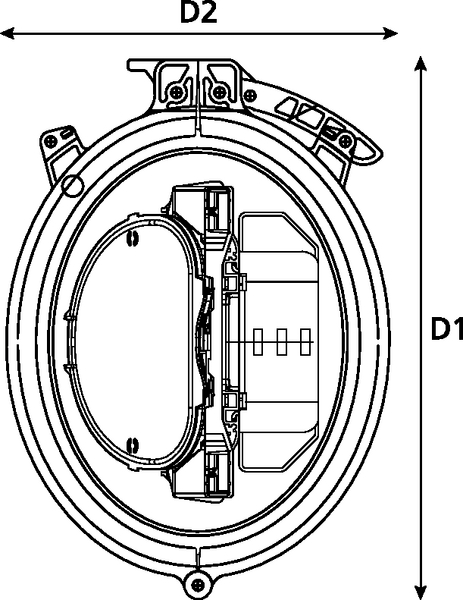

Width D1 312mm
Width D2 222mm
GTIN-13 / EAN 5022660112645
ETIM 7.0 Key EC000762
