CAT6 Unshielded Euro Outlet : EC08IDCNGB/WH

50 x 25mm - Flat - WhiteNúm. Artíc.: 852-05381

Características del Producto

  • Industry standard Euro dimensions
  • Unshielded shuttered RJ45 Port
  • Slide-in Label Field

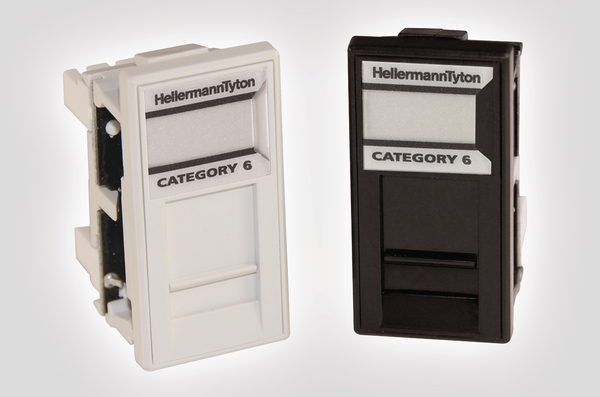

  • Available in black or white
  • Min Jack Life 1000 insertions
  • Part of the HellermannTyton 25 year system warranty
  • Backward compatible with Cat5e & voice applications
Colour White (WH)
Local order number EC08IDCNGB/WH
Pack Cont. 10pcs.
Package Quantity per box
PART DESCRIPTION EC08IDCNGB/WH
Performance Category Category 6 (Class E)
Port count 1
Product Description HellermannTyton Euro Outlets have been developed in line with industry standard euro dimensions 50x25mm to give the user a reliable cabling outlet at floor distribution level. Designed for use in wall outlets to support any data or voice protocol that is capable of running over a Category 6 cabling system.
Product Family 50 x 25mm - Flat - White
Product Group CAT6 Unshielded Euro Outlet
Short Description CAT6 Unshielded Euro 50x25mm Module - White
Technical Description Each individual Outlet is built and tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C. Cat6 Euro outlets are backwards compatible with Cat5e and voice applications.

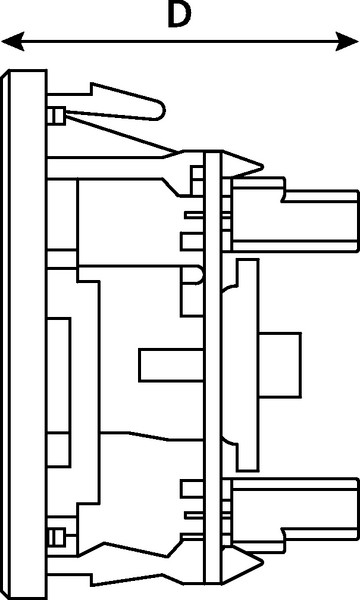

Depth (D) 34mm

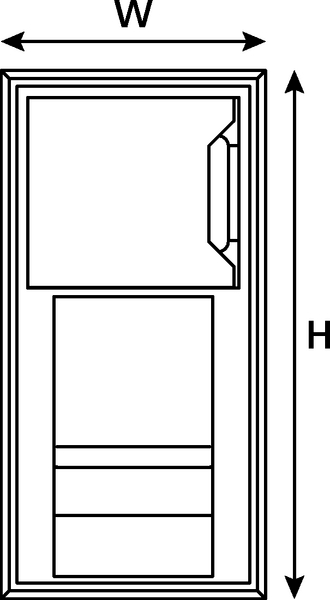

Height (H) 50mm
Width (W) 25mm

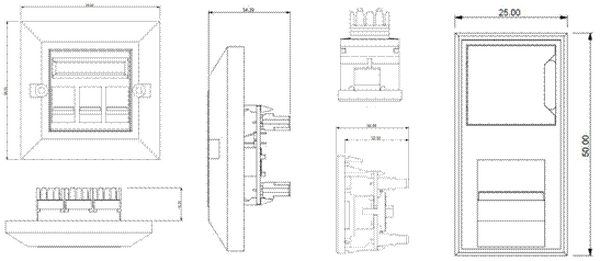

Dimensions W x H x D 25 mm x 50 mm x 34 mm
GTIN-13 / EAN 5022660824616
Packaging 1 - Weight (kg) 0.018kg
