Fibre Optic Internal Enclosure
Núm. Artíc. 857-00009 | BFP1019C Detalles

  • Maximum 96 fibre splice capacity
  • Cable entry points at the top and bottom
  • Lockable side hinged door
  • Cable strength member anchor points
  • Fibre storage area
Mostrar más

Solicite su oferta individual ahora

Colour Grey (GY)
Content Building Flexibility Point Box
Hellafos Trays (4)
Transportation Tubing
Tubefix - Tube to tray securing blocks
Marker Kit
Red Marker 1 - 48
Green Marker 1 - 48
Isopropyl Alcohol Wipes
Package Content packed in bag
PART DESCRIPTION BFP1019C
Product Description Building Flexibility Point Wall Box
Product Family Fibre Optic Internal Enclosure
Product Group BFP - Building Flexibility Point Wall Box
Qty Trays 4

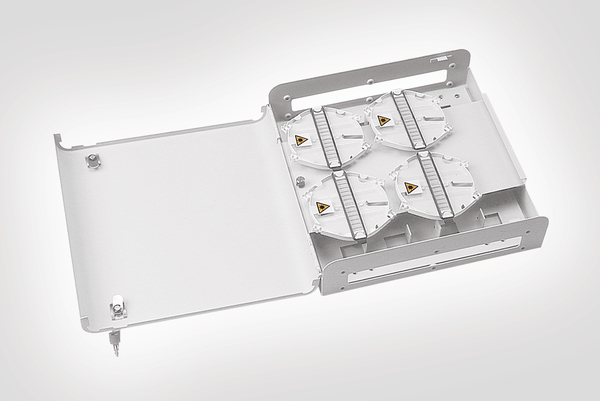

Technical Description The Building Flexibility Point (BFP) box is manufactured from epoxy coated steel and is designed for the protection of fibre optic cable splices within internal environments. It contains 4 Hellafos splice trays which are mounted on the single hinged splice tray mounting plate. Each of the trays can achieve a maximum 24 splice capacity when using 3A heatshrink splices. The box is fitted with a lockable single hinged door, a back plate with cable strength member anchor points and the fibre storage area is positioned behind the hinged splice tray mounting plate. A range of glands and bulkhead plates for cable entry are detailed below and must be ordered separately.
Type of Tray Hellafos

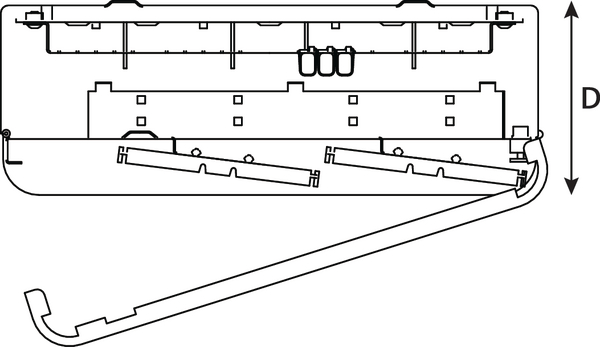

Depth (D) 128mm

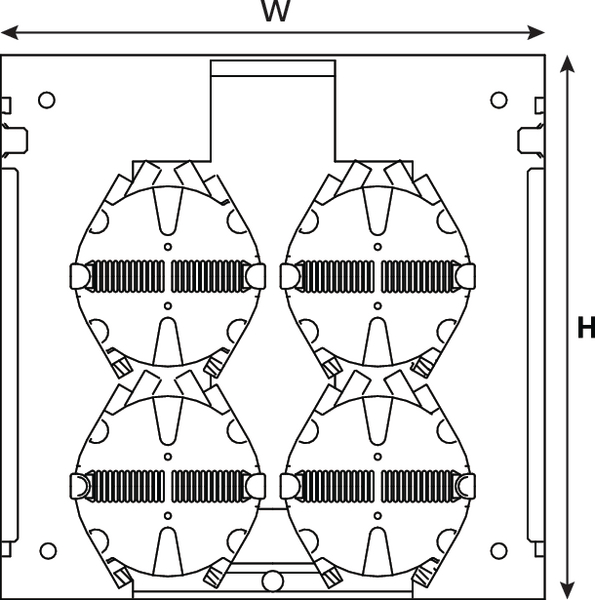

Height (H) 350mm
Width D1 350mm
Hazardous Goods No
Customs Number 85176200
GTIN-13 / EAN 5022660983825
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
