RapidNet 4 Port Category 5e : RN04U5E-CAPLXX-10.0M

Cassette to RJ45 Plug, Núm. Artíc.: 859-40872

Añadir a “Mis descargas”

Características del Producto

Exceeds Category 5e performance standards
24 ports in 1U
Factory pre-terminated and tested
Reduce installation times by up to 85%
Ideal solution when connecting with active equipment
Backward compatible with Category 5 and voice

Aplicación

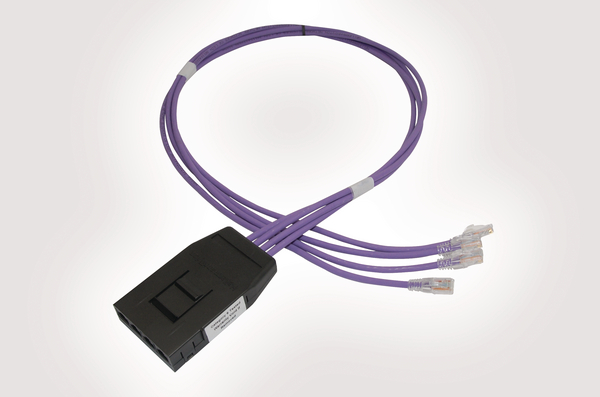

RapidNet from HellermanTyton is the unique, pre-terminated and pre-tested solution that offers uncompromised performance and quality. RapidNet can reduce installation time by up to 85% and is designed to meet the exacting standardss of mission critical installations where network down time and poor performance is not an option. The 4 core bundled cables have been specially designed to eliminate potential alien cross talk issues and used a clear tape to reduce the bundle ensuring a hign quality, well managed installation. The 4 port RapidNet cassette to RJ45 plug presents 4 RJ45 ports in one cassette and 4 RJ45 moulded plugs at the other.

Más productos de la gama

RapidNet 4 Port Category 5e >

Base Data

Application 2	The RapidNet Cat5E solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing Cat5E and Cat5 and voice network infrastructure.
Colour	Violet (VT)
Connector Type	RJ45 UTP
Features and Benefits	Meets all ISO/TIA Category 5E performance standards
Pack Cont.	10.0m
PART DESCRIPTION	RN04U5E-CAPLXX-10.0M
Performance Category	Category 5E (Class D)
Port count	4
Product Description	The RapidNet 4 Port Cassette to RJ45 Plug is pre- terminated with 4 RJ45 ports in the cassette at one end and RJ45 plugs at the other end, with 6 cassettes fitting into a standard 4 Port RapidNet Patch Panel. A fully loaded panel presents 24 ports in 1U of space. The cassette to RJ45 Fanout cross-connect solution reduces the risk of damage to the ports on expensive active equipment. When used for server connectivity it simplifies the management of connections to each unit without accessing the rear of the data cabinets.
Product Family	Cassette to RJ45 Plug
Product Group	RapidNet 4 Port Category 5e
Technical Description	The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. The 4 RJ45 plugs are manufactured to a uniform length (staggered lengths are available on request to allow effective cable management). All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 5e standards. All RapidNet Category 5e cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 1m to 90m.
Type	RN04U5E-CAPLXX-10.0M
