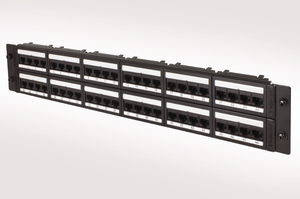

CAT5e Unshielded 48 Port Panel : 2/4808IDCG5E/BK

2U Flat, Núm. Artíc.: 853-25031

Colour	Black (BK)
Panel Fixing Method	rack snap
PART DESCRIPTION	2/4808IDCG5E/BK
Performance Category	Category 5E (Class D)
Port count	48
Product Description	HellermannTytons Category 5e product range is designed and manufactured to offer exceptional performance and reliability, supporting any voice and data protocol capable of running over a Category 5e system. Available in 1U 24 port and 2U 48 port presentations. Each panel is constructed of 6 modular units, each offering 4 RJ45 ports. There are two labelling fields as standard with a magnifying lens for clear identification. Each panel is supplied with Rack Snap fixings as standard.
Product Family	2U Flat
Product Group	CAT5e Unshielded 48 Port Panel
Short Description	CAT5E Unshielded 2U 48 Port Patch Panel
Technical Description	The Category 5e Patch Panel is manufactured from black powder coated mild steel with a 4 port modular PCB assembly jack presentation which can be removed and replaced if required. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. Each panel is supplied with a comprehensive T568A/B wiring guide label on the rear of the modules to ensure error free terminations. Category 5e panels are also backwards compatible and will support voice applications
Type	2/4808IDCG5E/BK

Dimensions W x H x D	483 mm x 88 mm x 31 mm
EAN / GTIN	5022660840128
