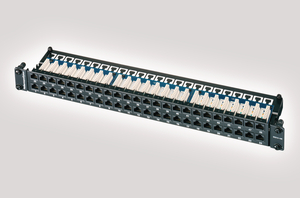

CAT6 Unshielded 48 Port Panel : 1/4808IDC C6/BK
1U Right Angled, Núm. Artíc.: 853-35094
Características del Producto
- Unshielded 1U 48 ports
- Right Angled LSA Punch Down Presentation
- 568A/B wiring options
- Numbered Ports
- Supplied with Rack Snap mounting fixings
- Exceptional Category 6 performance
- Part of the HellermannTyton 25 year system warranty program
- Backwards compatible with cat5e and voice applications
- Integral rear cable rear managment
Más productos de la gama
CAT6 Unshielded 48 Port Panel >| Colour | Black (BK) |
| Panel Fixing Method | rack snap |
| PART DESCRIPTION | 1/4808IDC C6/BK |
| Performance Category | Category 6 (Class E) |
| Port count | 48 |
| Product Family | 1U Right Angled |
| Product Group | CAT6 Unshielded 48 Port Panel |
| Short Description | CAT6 Unshielded 1U 48 Port Right Angled Patch Panel |
| Technical Description | HellermannTytons Category 6 product range is designed and manufactured to offer exceptional performance and reliability, supporting any voice and data protocol capable of running over a Category 6 system. The right angled presentation of these panels offer a stable and easy termination platform, which also acts as the rear cable manager. Available in 1U 24 port and a high density 1U 48 port variation. Each panel is supplied with Rack Snap fixings as standard. |
| Type | 1/4808IDC C6/BK |
| Depth (D) | 91mm |
| Height (H) | 44mm |
| Height, Units | 1U |
| Width (W) | 483mm |
| Dimensions W x H x D | 483 mm x 44 mm x 91 mm |
| EAN / GTIN | 5022660845390 |
| Weight | 1.4kg |
